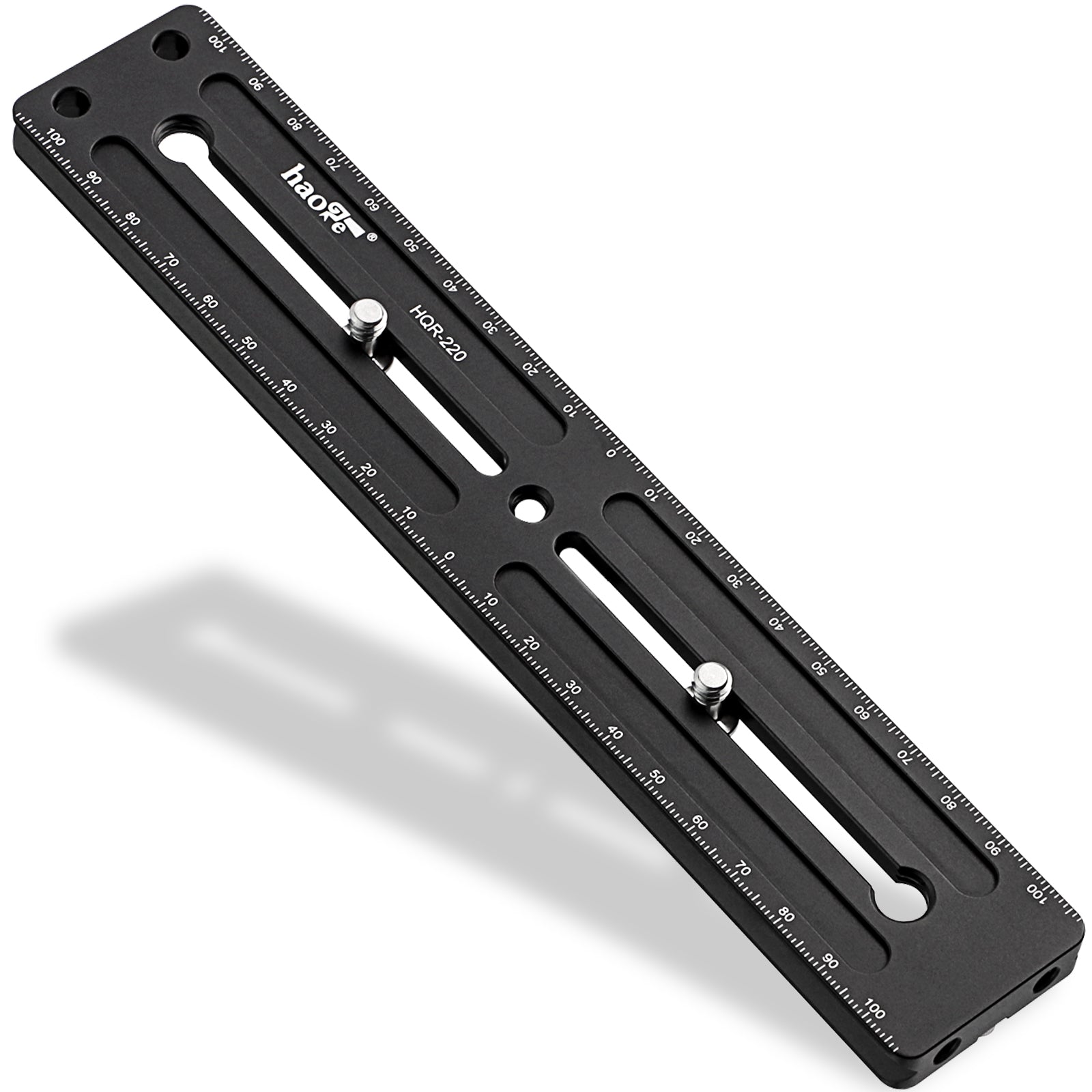

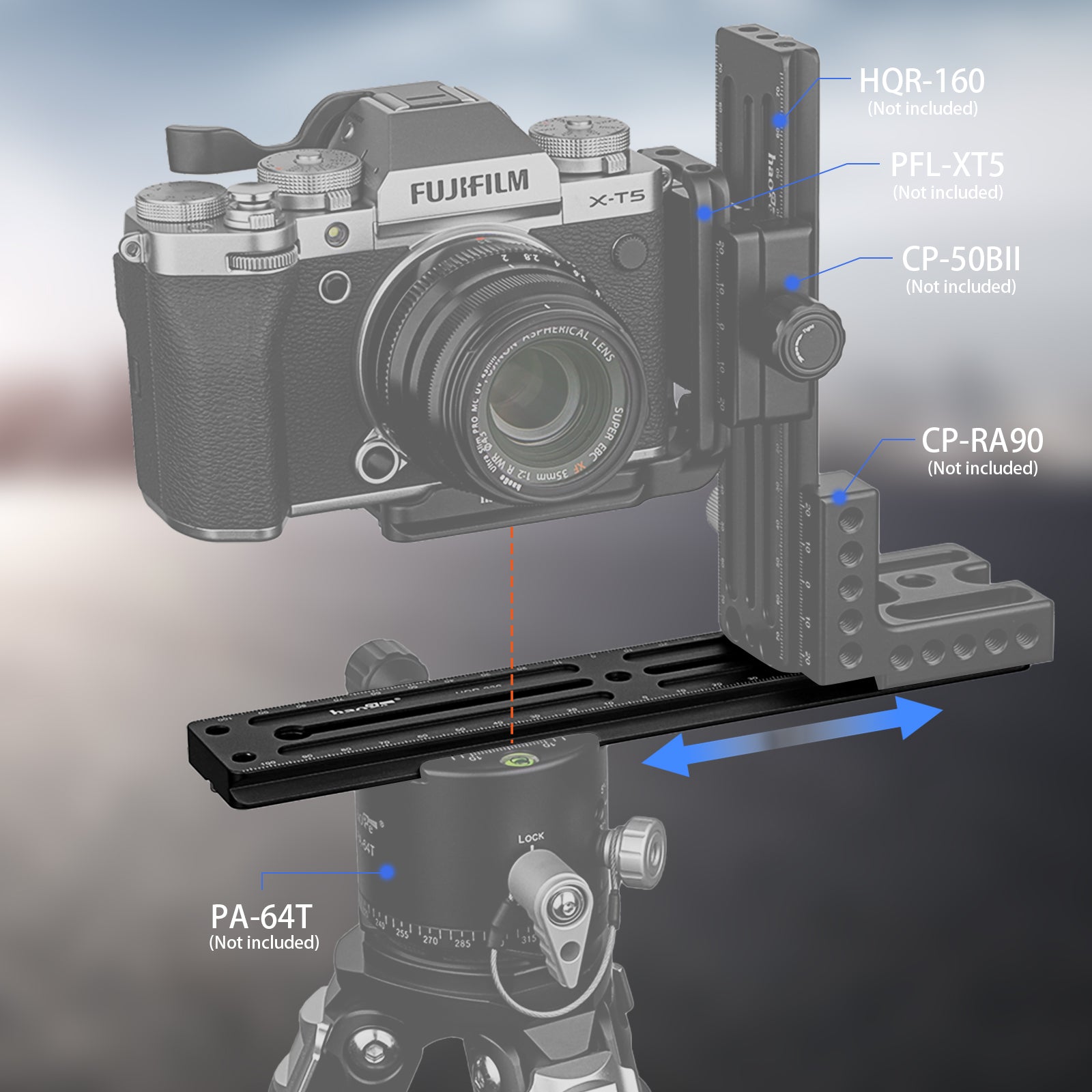

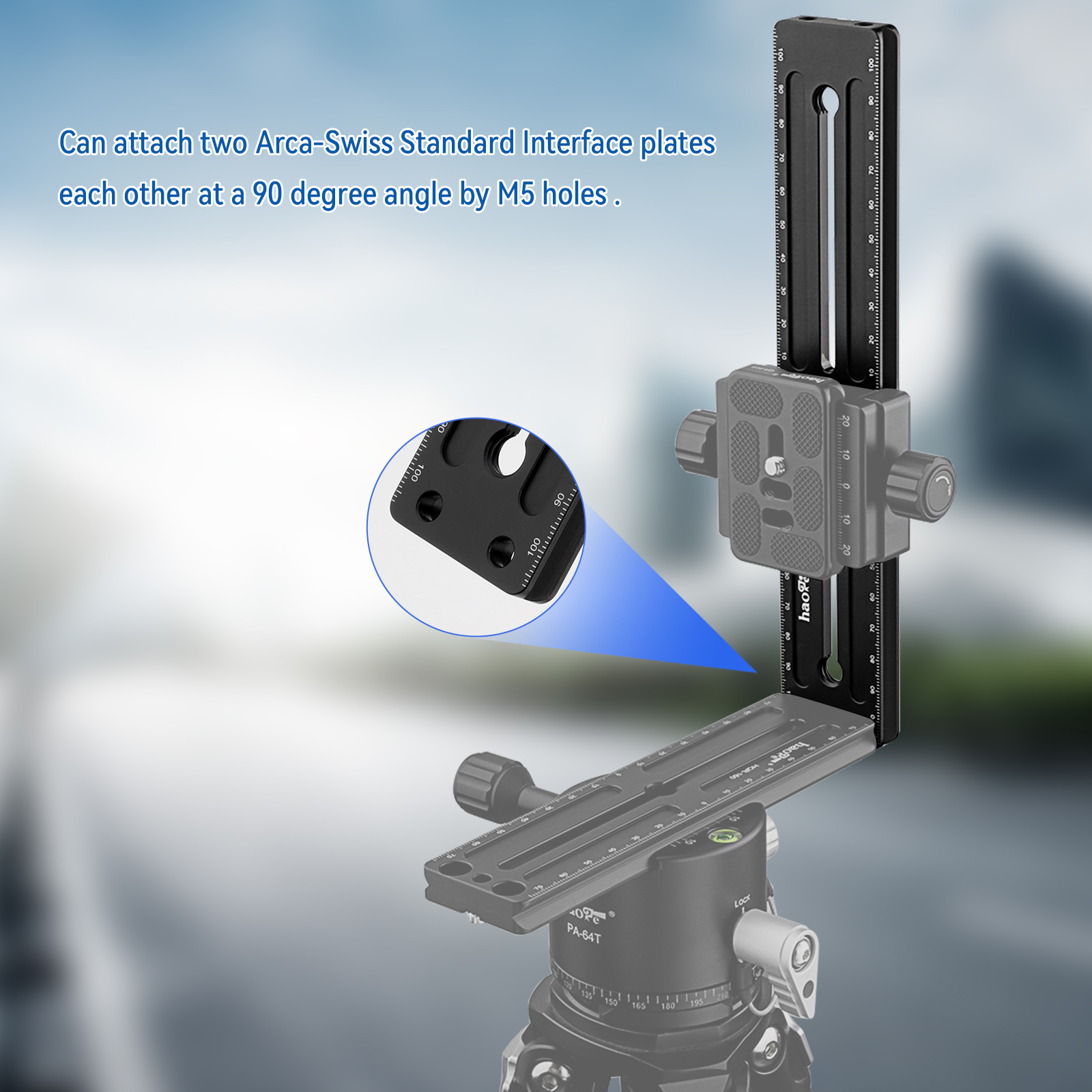

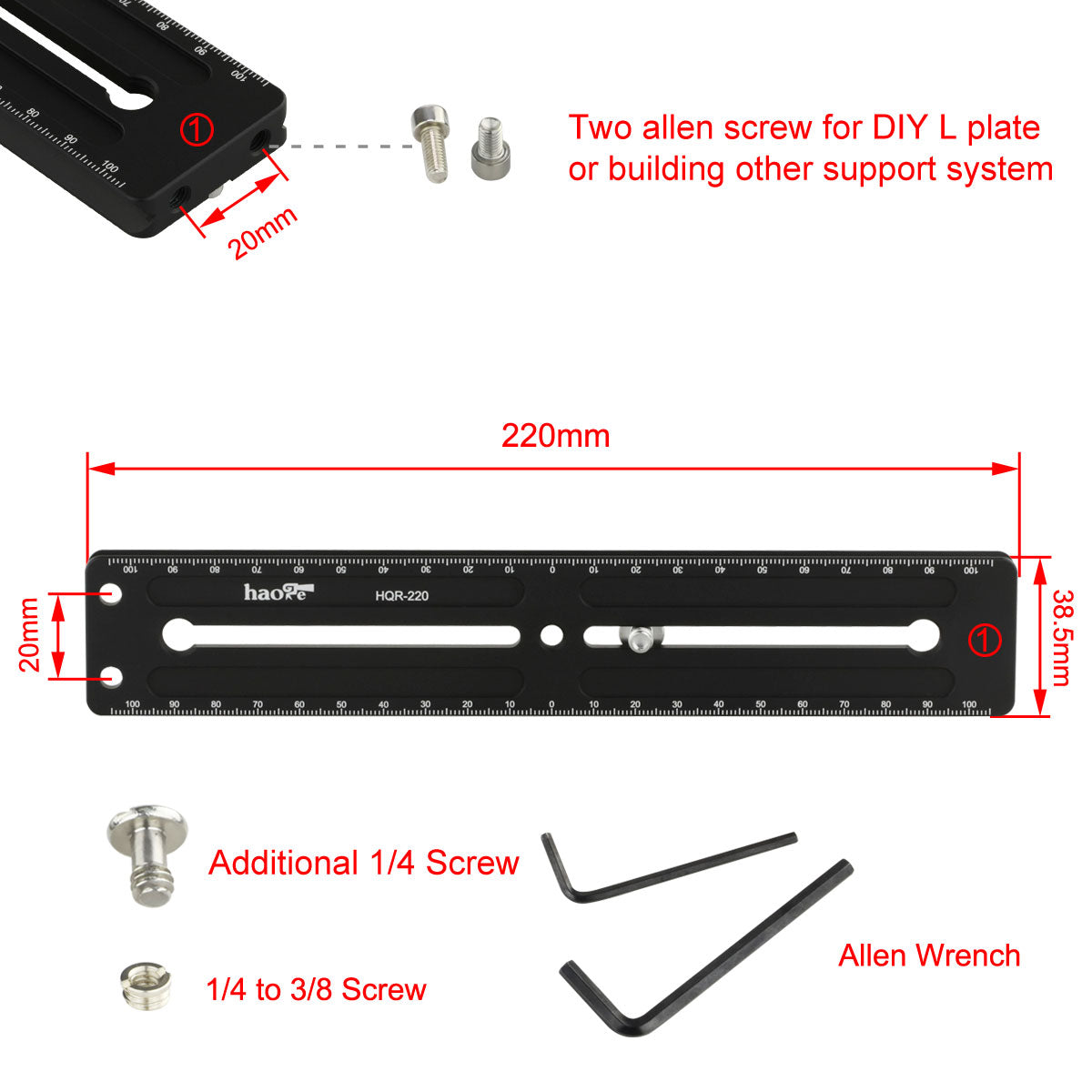

The Haoge HQR-220 universal quick release long plate is an Arca-type compatible multi-purpose rail with a laser-engraved reference scale with 1mm increments on both sides. It allowing for easy nodal point adjustments. There are four holes at the ends of the plate for DIY L Plate or building other support systems.
Features:
Dual dovetail design, both sides can be mounted equipments.
Compatible with a variety of digital cameras.
With 39mm AS standard interface, compatible with all Acra-Swiss Style quick release platforms.

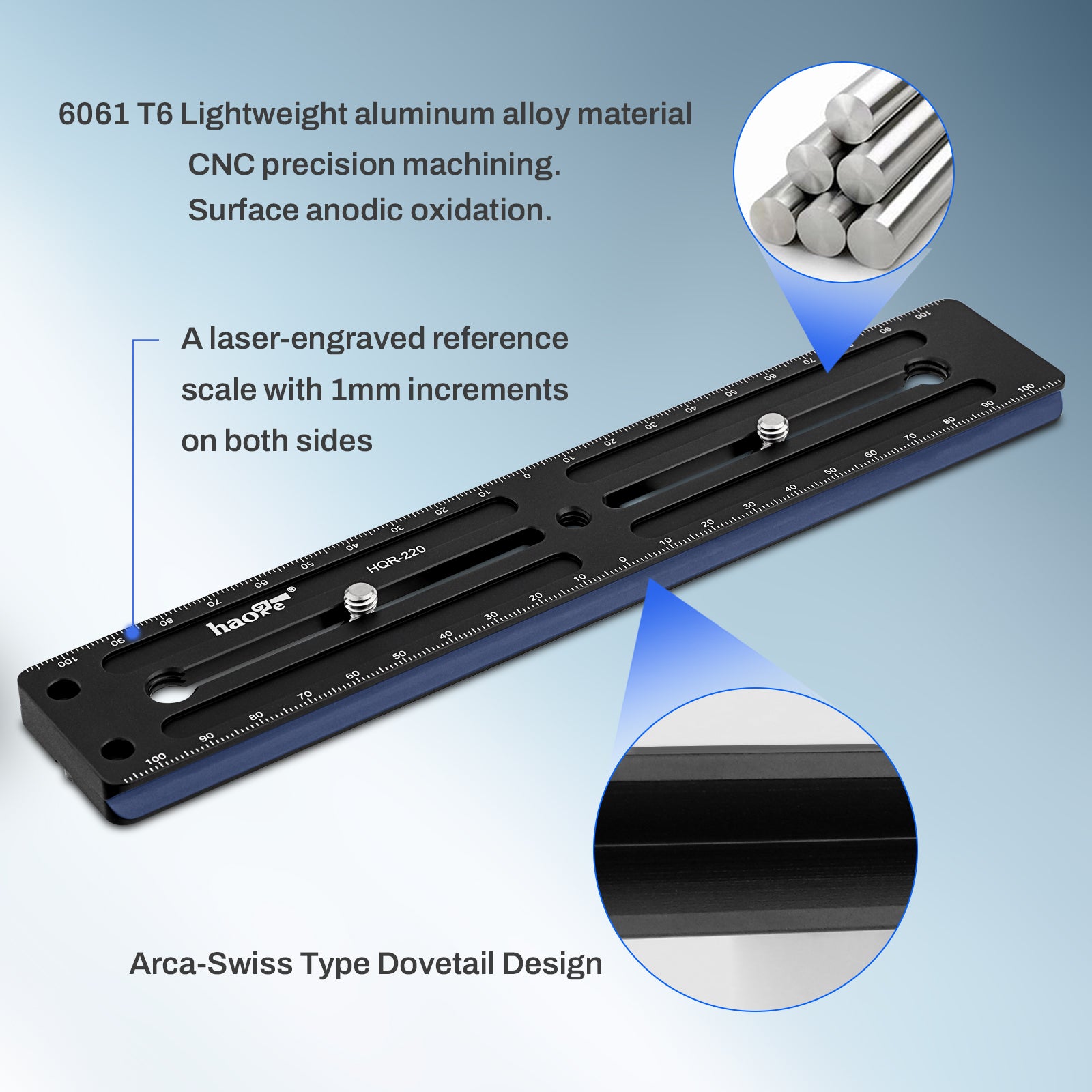

High quality aluminum alloy is used to ensure a light weight but super high strength support.

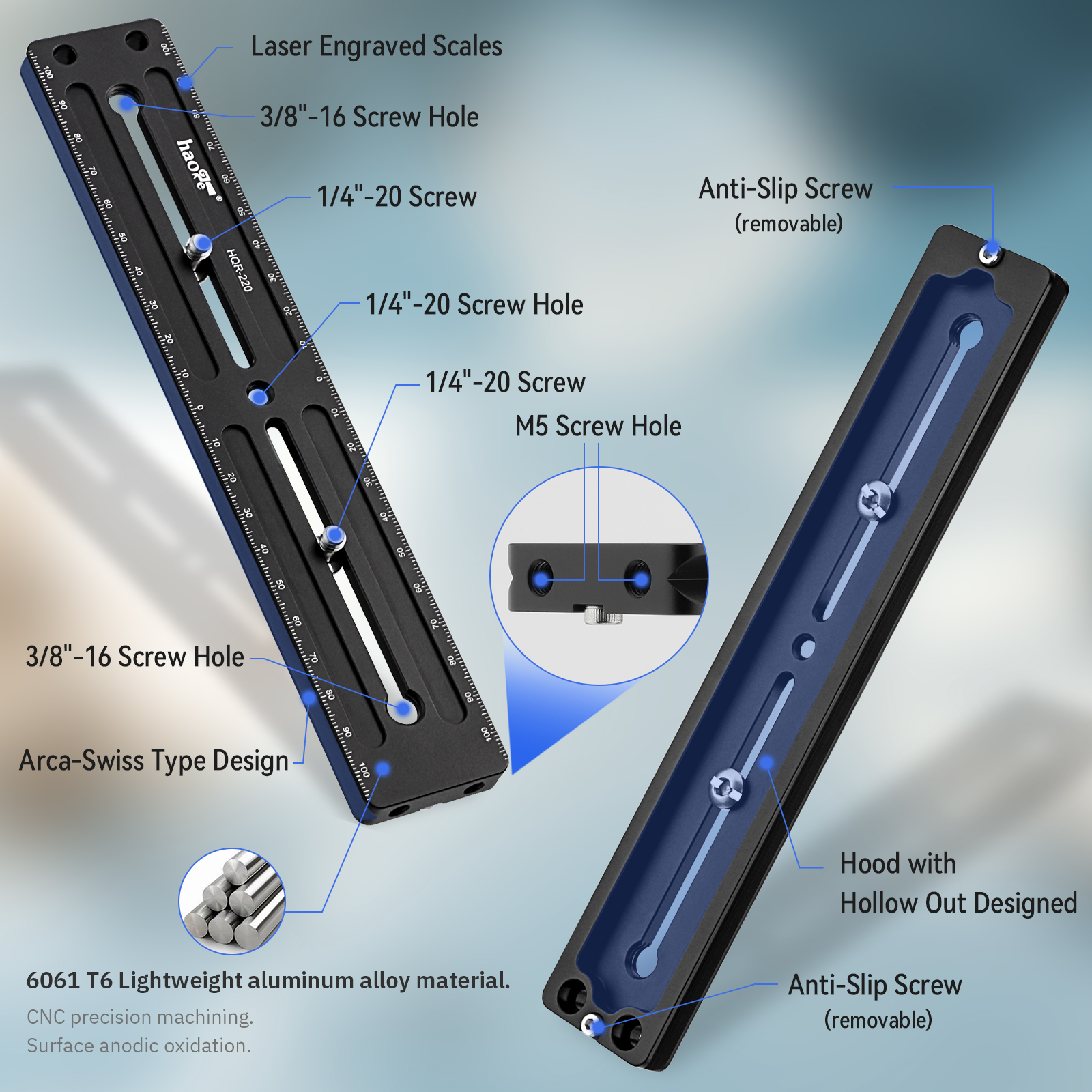

Two safety stop screws in both side to prevent drop of camera by accident.
Specifications:
Material: Aluminum Alloy
Color: Black
Length: 220mm
Width: 38.5mm
Thickness: 10mm
Weight: 133g
Compatibility: Arca-Swiss Standard
Compatible with:
RRS / ARCA-SWISS / KIRK / Wimberley / MARKINS / SUNWAYFOTO / Kangrinpoche / BENRO / SIRUI Ball Head, Clamp or Panorama Head of AS standard interfaces
(Note:the item can not fit RRS level-release system)

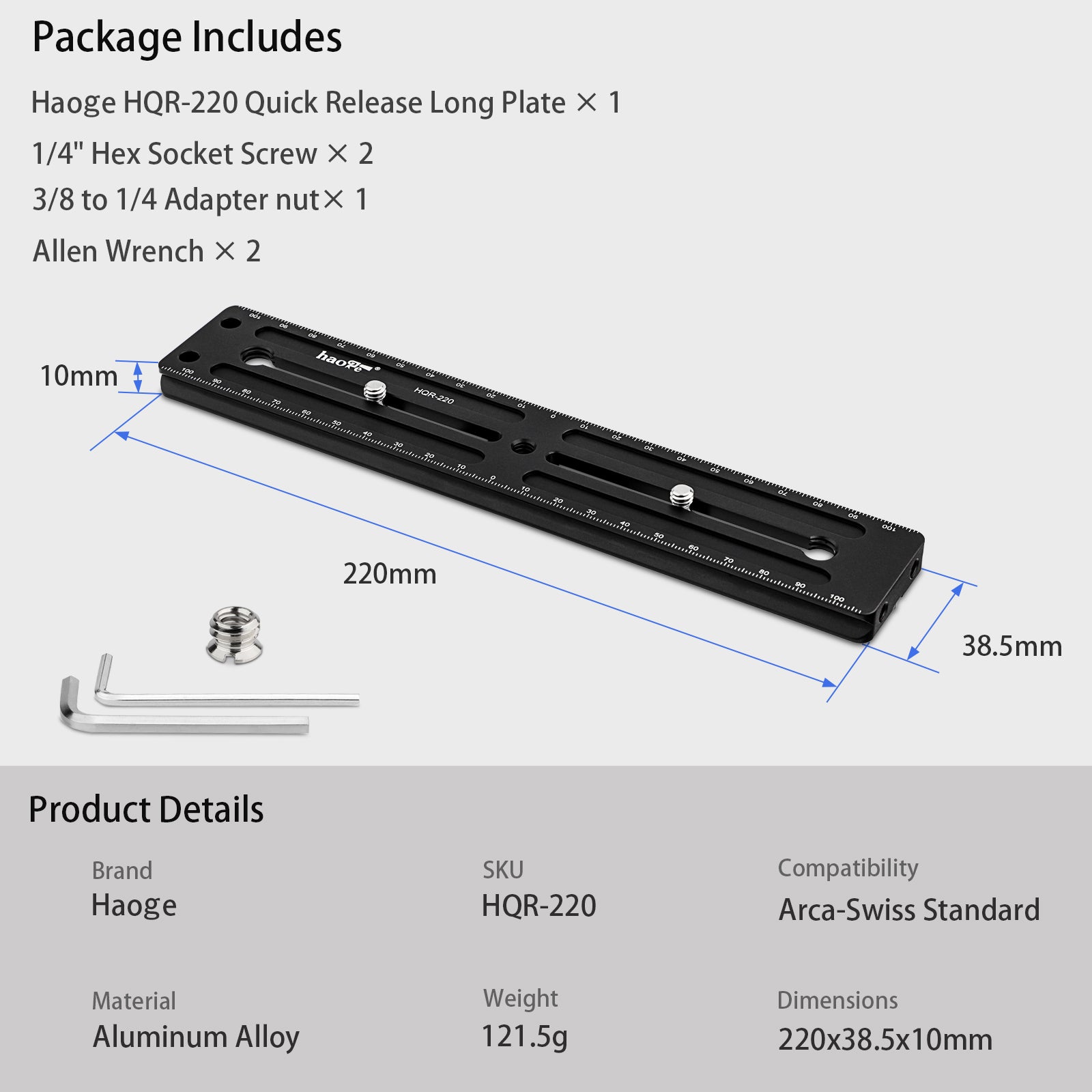

Package included:
1 x Haoge HQR-220 Quick Release Long Plate
2 x 1/4" Hex Socket Screw
1 x 1/4 to 3/8 Screw
2 x Allen Screw
2 x Allen Wrench
(Note: Ball Head is not included)
